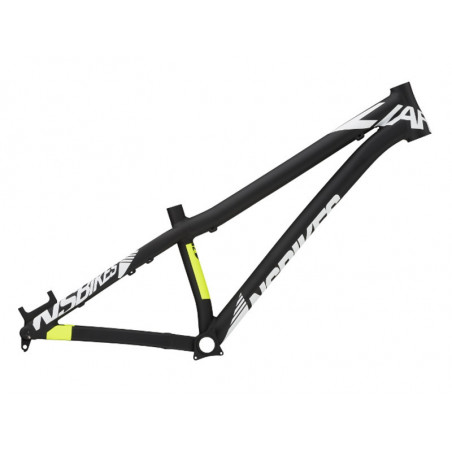

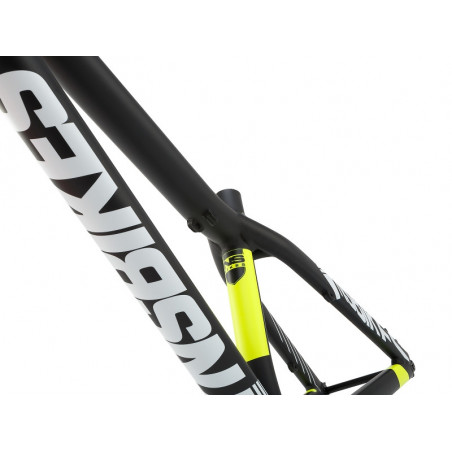

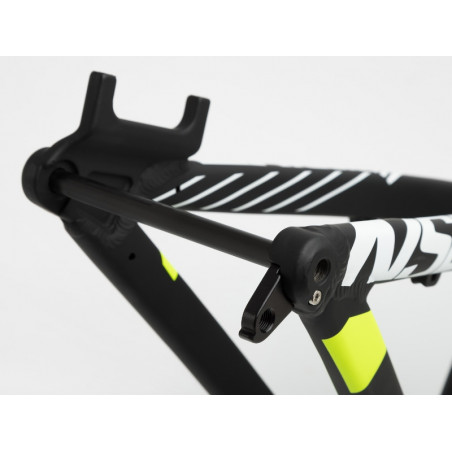

Frame NS BIKES Liar Flat Black

The Liar is our new ultra-light, incredibly strong aluminum racing frame at just over 1.9 kg. We used oversized and butted tubes to minimize the flex that can occur especially during acceleration.

10237
Out-of-Stock
€379.00
€189.50
VAT included

Product description

It has a 4X geometry, with a lowered top tube for more control at higher speeds, a short chain for stiffness, responsiveness and a low crankset for more stability in the air. The Liar features a fully integrated tapered head tube that works with standard 1 1/8" or tapered 1.5 to 1 1/8" head tubes. The Liar is designed to work with forks from 100 to 140 mm of travel.

KEY FEATURES:

- designed for 4X and pump race tracks

- custom aluminum tubing with double pass welding

- fits forks with standard and tapered head tubes

- incredibly strong yet very light, at just over 1.9 kg

TECHNICAL SPECIFICATIONS:

MATERIALS: AL6061-T6 + AL6066-T6 CUSTOM FORMED AND BUTTED TUBES, SMOOTH DOUBLE PASS WELD IN CRITICAL AREAS

RECOMMENDED DISPLACEMENTS AT RANGE: 80-120MM

HEAD TUBE: INTEGRATED TAPER IS42/IS52, HEAD TUBE LENGTH: 115MM

FITS FORKS: STANDARD 1-1/8" HEAD TUBE OR 1.5 1-1/8" TAPER

BB: 73MM THREADED WITH ISCG-05 MOUNTS

LARGEST CHAINRING: UP TO ~36T (SRAM XX1 UP TO 34T)

DISC BRAKE: DISC BRAKE MOUNT IS INTERNATIONAL STANDARD, MAXIMUM ROTOR SIZE: UP TO 185MM

HUB SPACING: 142X12MM, INCLUDING NS AXLE

REAR DERAILLEUR: REMOVABLE BRACKET NOT INCLUDED

FRONT DERAILLEUR: NOT COMPATIBLE

SEATPOST / CLAMP: 31.6MM / 34.9MM

MAX SEAT: POST INSERTION 200MM

MAX TIRE: 26 X 2.4

SIZE: AVAILABLE IN 1 SIZE (12")

WEIGHT: ~1.9KG
