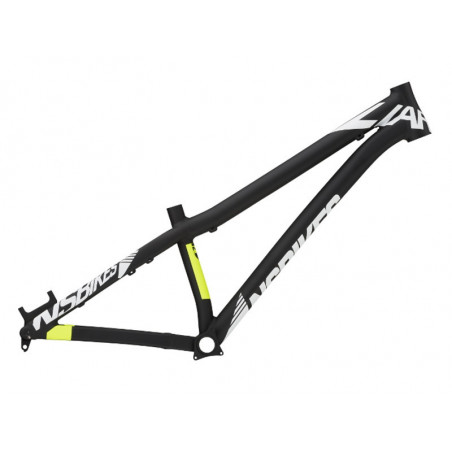

Frame NS BIKES Liar Flat Black

The Liar is our new full-on race bred machine - ultra lightweight aluminum, incredibly stiff and strong at just over 1.9kg. We have employed custom butted oversized tubes to minimize any flex that can occur especially when accelerating out of the gate.

10237
€379.00
VAT included

Paiement en 3 ou 4 fois sans frais
Paiement en 3 ou 4 fois sans frais Lorsque le prix de votre panier se trouve entre 135€ et 2000€.

Product description

It has dedicated 4X geometry, with a low top tube, slack head angle for more control on high speeds, short chain stays for stiffness and quick handling and a low bottom bracket for stability in the air. The Liar features a fully integrated tapered head tube which works with both standard 1 1/8” or tapered 1.5 - 1 1/8” steerer tubes. The Liar is designed to work with forks from 100-140mm of travel.

MAIN FEATURES:

- designed for 4X racing and pump tracks

- custom aluminum tubes with double pass welding

- fit forks with standard and tapered steerer tubes

- incredibly strong yet still very light at just over 1.9kg

- 142x12 dropouts with axle included.

Technical Specifications

Material: AL6061-T6 + AL6066-T6 custom formed and butted tubes, smooth double pass welding in critical areas

Recommended fork travel: 80-120mm,

Head tube: integrated tapered IS42/IS52, head tube length: 125mm

Fits forks: standard 1-1/8” or tapered 1.5 1-1/8” steerer tubes

BB: threaded 73mm with ISCG-05 mounts

Biggest chainring: up to ~36t (SRAM XX1 up to 34t)

Disc brake: post mount disc brake mount, max rotor size: up to 185mm

Hub spacing: 142x12mm, NS axle included

Rear derailleur: removable hanger included

Front derailleur: not compatible

Seat post/clamp: 31.6mm / 34.9mm

Max seat: post insertion 210mm

Max tire: 26 x 2.35”

Size: available in 1 size (12”)

Weight: 2.12 kg (w/o axle)

Specifications subject to change without notice. Actual colours and design may vary slightly from the images on the website.

Liar
Wheel size 26"
Based on fork travel 100,0
Reach mm 425,0
in 16,7
FC mm 690,0
in 27,2
Standover mm 741,0
in 29,2
Stack mm 574,0
in 22,6
Effective TT mm 583,0
in 23,0
Actual TT mm 574,0
in 22,6
Seat tube mm 310,0
in 12,2
Chain stays mm 395,0
in 15,6
BB rise mm -28,0
in -1,1
Headtube angle 68,0
ST angle effective 74,5
Wheelbase mm 1083,0
in 42,6
