Stay true, stay ECCENTRIC! Aggressive modern geometry, very long reach and super slack head angles - the eccentric bikes are the hardtails of the future. With the big burly 29” wheels you will roll over everything without thinking twice, but at the same time you get the wonderful feeling of being connected with the trail that only a hardtail can provide.
Product description
You don’t need a full suspension bike to be fast on the climbs and have fun on the downhills! The eccentric bikes are available in several versions. If you’re looking for a hard hitter, choose between the cromo and the alu based on your preferences of frame materials. For typical trail riding, the lite versions should be more than enough.

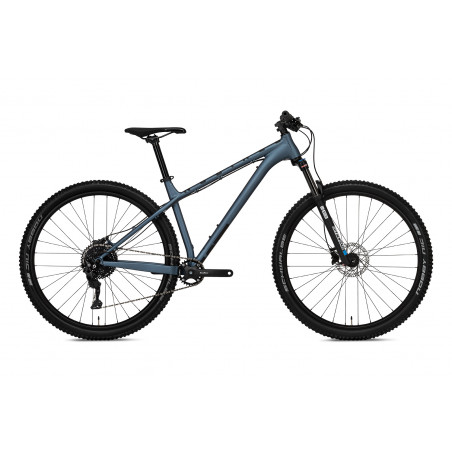

Those looking for a modern hardtail trail bike should check out the ECCENTRIC LITE. Sure, it's light (as the name says), and looks totally unique (as you can see) but the key point is the radical geometry that makes this bike really different from anything else out there. The slack angles and long reach inspire confidence. No matter if you are a beginner or expert, we don't see why you should be riding the short steep donkeys that are the norm on the market in this category.
Main features
Frame: NS Bikes AL6061-T6 custom formed and butted tubes, 135x10 dropouts
Size: S,M,L
Fork: Suntour XCM32 LOR DS, 120mm travel, 15x110mm Boost, 1&1/8” steerer tube
Rear shock: /
Headset: GW integrated tapered IS42/IS52, sealed bearings
Stem: NS Drop 31.8, 50mm, angle –10°
Handlebar: NS Bar 31.8, 760mm 12mm rise
Grips: NS Hold Fast Unlocked
Seatpost: Kalloy 31.6
Seddle: Octane One Rocker2
Front brake: Shimano hydraulic BL-MT200, 160mm
Rear brake: Shimano hydraulic BL-MT200, 160mm
Levers: Shimano BR-M315
Rims: Octane One Solar 29”, 32h, tubeless compatible
Spokes: Spokes w/14mm nipples
Fronthub: Joytech 15x110mm Boost front
Rearhub: Joytech 135x9mm QR
Tires: Schwalbe Nobby Nic 29x2.35"
Crankset: Sunrace FCM80T 30t 175mm
Bottom bracket: FSA BSA square taper 73mm
Pedals: /
Chain: KMC, 10spd
Derailleur: Shimano Deore M5120, 10spd
Shifters: Shimano Deore M5120, 10spd
Cassette: Sunrace CSMS2 10spd 11-42t
Weight (kg): 14,2
Eccentric Lite 1 | S | M | L | |
Wheel | size | 29" | ||
Based on | fork travel | 120,0 | 120,0 | 120,0 |
Reach | mm | 415,0 | 435,0 | 460,0 |
in | 16,3 | 17,1 | 18,1 | |
FC | mm | 718,0 | 743,0 | 771,0 |
in | 28,3 | 29,3 | 30,4 | |
Standover | mm | 725,0 | 751,0 | 786,0 |
in | 28,5 | 29,6 | 30,9 | |
Stack | mm | 618,0 | 628,0 | 637,0 |
in | 24,3 | 24,7 | 25,1 | |
Effective TT | mm | 587,0 | 610,0 | 637,0 |
in | 23,1 | 24,0 | 25,1 | |
Actual TT | mm | 562,0 | 582,0 | 608,0 |
in | 22,1 | 22,9 | 23,9 | |
Seat tube | mm | 407,0 | 445,0 | 495,0 |
in | 16,0 | 17,5 | 19,5 | |
Chain stays | mm | 420,0 | 420,0 | 420,0 |
in | 16,5 | 16,5 | 16,5 | |
BB rise | mm | -55,0 | -55,0 | -55,0 |
in | -2,2 | -2,2 | -2,2 | |
Headtube | angle | 66,5 | 66,5 | 66,5 |
ST angle | effective | 74,5 | 74,5 | 74,5 |
Wheelbase | mm | 1132,0 | 1157,0 | 1185,0 |
in | 44,6 | 45,6 | 46,7 |
