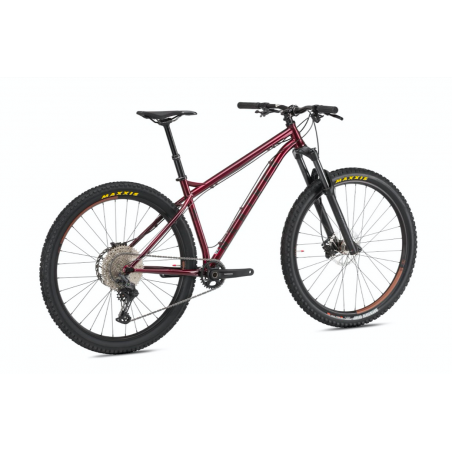

VTT Enduro NS BIKES Eccentric Cromo 29 Red

Stay true, stay ECCENTRIC! Aggressive modern geometry, very long reach and super slack head angles - the eccentric bikes are the hardtails of the future. With the big burly 29” wheels you will roll over everything without thinking twice, but at the same time you get the wonderful feeling of being connected with the trail that only a hardtail can provide.

10615
Out-of-Stock
€2,099.00
VAT included

Product description

You don’t need a full suspension bike to be fast on the climbs and have fun on the downhills! The eccentric bikes are available in several versions. If you’re looking for a hard hitter, choose between the cromo and the alu based on your preferences of frame materials. For typical trail riding, the lite versions should be more than enough.

Radical, modern geometry with a very long reach and a super slack head angle make this bike ideal for anyone who likes to go full gas! This heart of this beautiful 29'er is the amazing steel frame built with custom drawn tange tubes with built-in gussets. At around 2.4 kg the frame is light by any standards, but don’t worry, it’s strong enough to hold up to a lot of abuse. All the know-how that we have managed to acquire over the years in building steel dirt-jump hardtails has been funneled into this frame and we are sure it's the very best money can buy. This is really a very unique looking bike and with the dropper post that's included in the package, it rides like a dream both up and down mountains.

MAIN FEATURES

Frame: NS Bikes 4130 cromoly frame, built with Tange Eccentric tubes, Boost 148x12 dropouts

Size: S,M,L

Forks: Rock Shox Recon 140mm travel, 15x110mm Boost, 1.5 tapered steerer tube

Rear Shocks: /

Headset: GW integrated tapered IS42/IS52, sealed bearings

Stem: NS Tone 31.8, 45mm

HandleBar: NS Bar 31.8, 780mm 20mm rise

Grips: NS Hold Fast

Seatpost: X-Fusion Manic internal 125, 150mm

Seddle: Octane One Rocket2, CrMo hollow rails

Front Brake: Shimano MT410, 180mm

Rear Brake: Shimano MT410, 180mm

Levers: Shimano

Rims: Octane One Solar 29”, 32h, tubeless compatible

Spokes: Spokes w/14mm nipples

Front Hubs: NS Rotary 15 Boost 110x15 disc (sealed bearings)

Rear Hubs: NS Rotary Cassette 148x12mm Boost (sealed bearings)

Tires: Maxxis DHF EXO/TR 29x2.5" WT / Maxxis Aggressor EXO/TR 29x2.5" WT

Crankset: Shimano Deore FCMT5101 170mm 32t

Bottom bracket: Shimano BSA 73mm

Pedals:/

Chain: Shimano, 12 spd

Derailleur: Shimano Deore M6100, 12spd

Shifters: Shimano Deore M6100, 12spd

Cassette: Sunrace CSMZ800, 12spd 11-51T

Weight (kg): 13,9


Eccentric Cromo   S M L
Wheel size 29"
Fork travel 140 140 140
Reach mm 425 450 475
in 16.7 17.7 18.7
FC mm 760 779 809
in 29.9 30.7 31.9
Standover mm 745 767 802
in 29.3 30.2 31.6
Stack mm 641 641 650
in 25.2 25.2 25.6
Effective TT mm 609 634 662
in 24.0 25.0 26.1
Actual TT mm 583 603 629
in 23.0 23.7 24.8
Seat tube mm 412 450 500
in 16.2 17.7 19.7
Chain stays mm 430 430 430
in 16.9 16.9 16.9
BB rise mm -60 -60 -60
in -2.4 -2.4 -2.4
Headtube angle 65,0 65,0 65,0
ST angle effective 74,0 74,0 74,0
Wheelbase mm 1183 1203 1232
in 46.6 47.4 48.5
